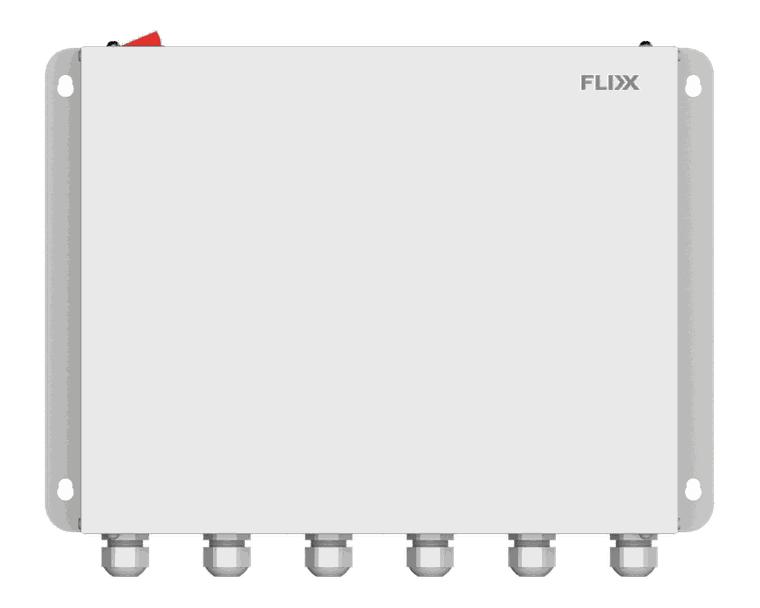

WCU wiring center box
WCU wiring center box - Image 2

WCU wiring center box

€742,00

High voltage outputs – 19

Sensor inputs –  8

Low voltage inputs –  8

Interface –  Modbus

SKU: WCU Category:

Description

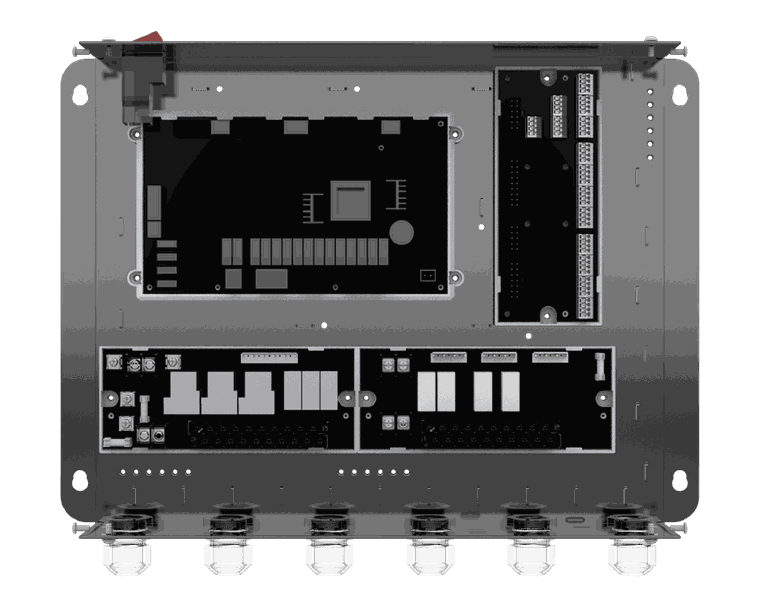

Internal structure:
  • Main board — control & Modbus interface
  • Adapter board for terminal block (strong current) — pumps, actuators, heaters
  • Adapter board for terminal block (weak current) — sensors, room thermostats
Typical use:
  • Used instead of an indoor unit when no hydraulic module is needed
  • All field wiring terminates in the boiler room, not at the outdoor unit
  • Single Modbus cable connects WCU to the outdoor unit
  • Recommended for cascade systems with multiple outdoor units
Model FLIXX WCU
Rated voltage/frequency 220-240V~ / 50Hz
Rated current,  A 5
Moisture resistance IP20
Electric shock proof class Class I
Net weight,  kg 7
Dimensions (W x H x D) 493 × 392 × 95mm
The WCU blocks communicate with the outdoor unit via Modbus using a single cable. All sensors, actuators and circulation pumps are connected locally in the boiler room – this is a convenient alternative to the indoor unit and the recommended approach for cascade systems with multiple outdoor units. For cascade installations, one WCU per system is recommended.
